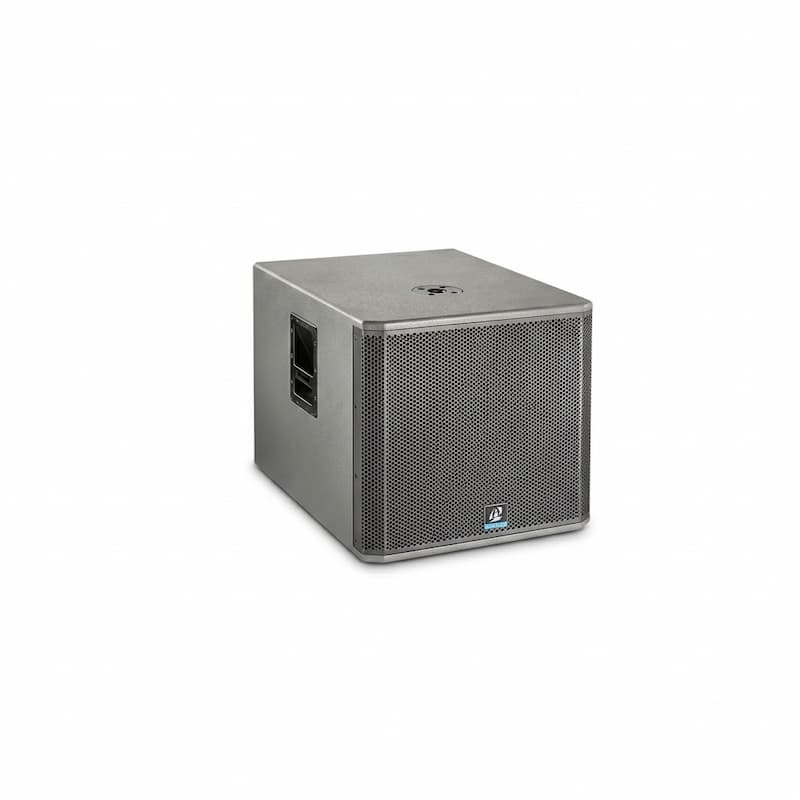

Loa Create Audio 18S

Frequency Response:35Hz-300Hz(±3dB)
Nominal Impedance:4ohm
Input Sensitivity:101dB(1W/1m)
Coverage（-6dB point）：–
Crossover point：–
LF unit: 1×18″
AES Power :1200W
Peak Power:2400W
Max SPL:137dB
Dimensions(WxDxH):670x795x510mm
Weight:45.5kg

Amplifier Module Specifications–
Power Ratings(RMS@1%THD@230Vac)
:800W@4ohm,THD 1%
Frequency Response:20Hz-20KHz
Working Voltage:85V-265Vac with PFC
Standby and Green energy：Yes(＜0.9W)
Signal To Noise-Ratio:80dB
Damping Factor:＞1000（8ohm load,1KHz or below)
THD+N(typical):＜0.1(20Hz-20KHz 8ohm load)
Input Impedance:Balanced20KΩ，Unblanced10KΩ
Input Connector:1xXLR female,1xXLR male
Gain：32dB
Protection Circuits：Short circuit protection,DC protection ,under

voltage protection ,temperature protection,overload protection .
Dante:selectable
DSP: 96KHz sample rate,fixed point DSP,Phase,All past filter,12

EQ,Crossover,Limiter,Driver free
800ms for each input and output Driver free
