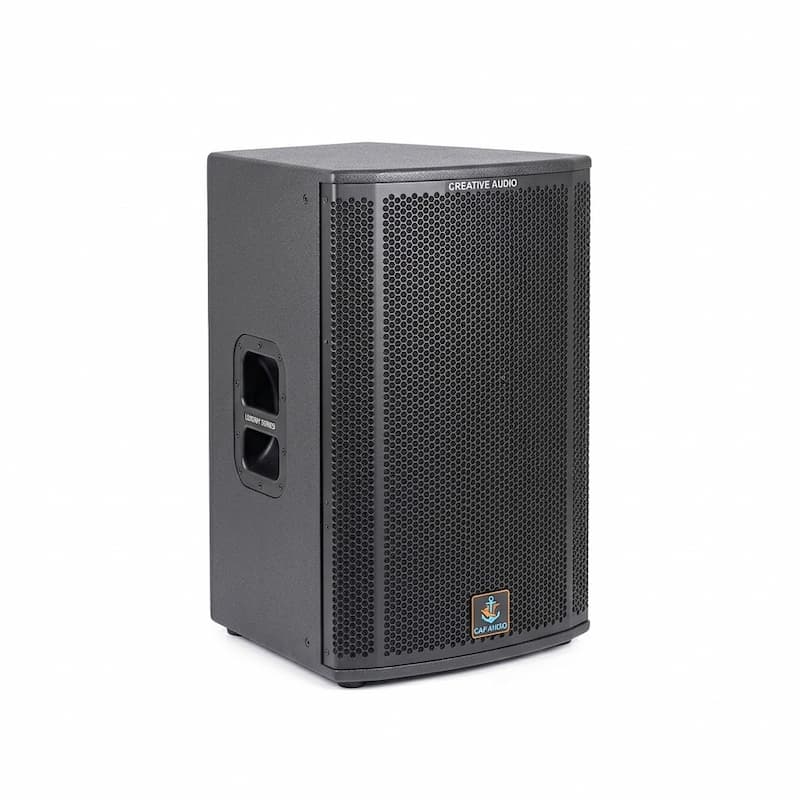

Create Audio F15A
Frequency Response:50Hz-18KHz(±3dB)
Nominal Impedance:LF 4ohm,HF 8ohm
Input Sensitivity:102dB (1W/1m)
Coverage(-6dB point):75°x60°(HxV)
Crossover point:2.3KHz
LF unit: 1×15″
HF unit: 1×1.75″
AES Power :700W
Peak Power:1400W
Max SPL:121dB
Dimensions(WxDxH):420x375x415mm
Weight : 24.5kg
Amplifier Module Specifications–
Power Ratings(RMS@1%THD@230Vac)
:500+100W@4ohm,THD 1%
Frequency Response:20Hz-20KHz
Working Voltage:85V-265Vac with PFC
Standby and Green energy:Yes(<0.5W)
Signal To Noise-Ratio:80dB
Damping Factor:>550(8ohm load,1KHz or below)
THD+N(typical):<0.1(20Hz-20KHz 8ohm load)
Input Impedance:Balanced20KΩ,Unblanced10KΩ
Input Connector:1xXLR female,1xXLR male
Gain:26dB
Protection Circuits:Short circuit protection,DC protection ,under
voltage protection ,temperature protection,overload protection .
Dante:selectable
DSP: 96KHz sample rate,fixed point DSP,Phase,All past filter,12
EQ,Crossover,Limiter,Driver free
800ms for each input and output Driver free
