Loa AED MULTISUB

MULTISUB

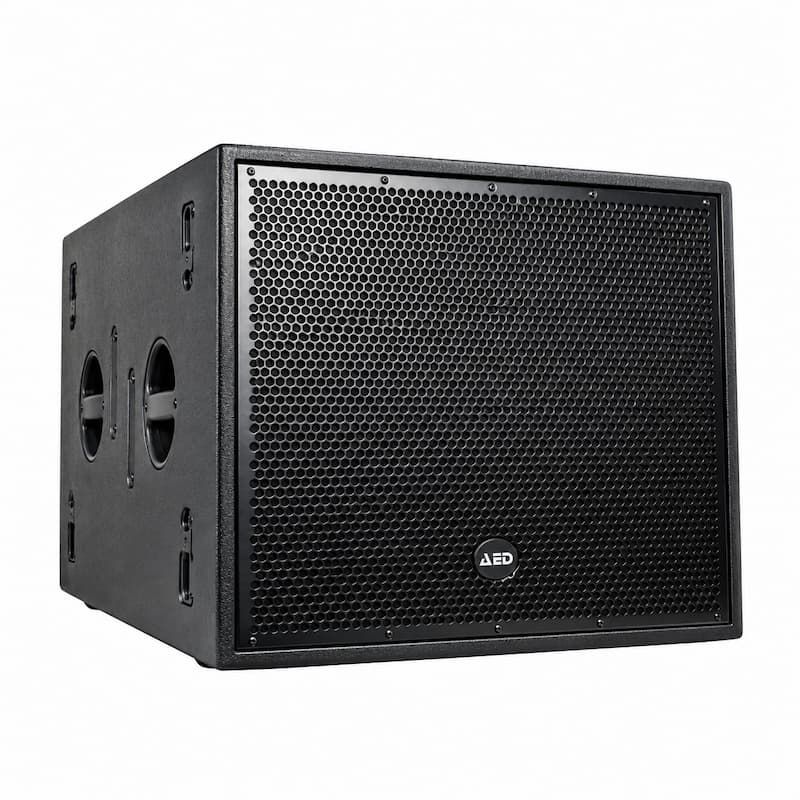

The MULTISUB is a state-of-the-art powered subwoofer designed to work alongside the MULTI12 to deliver exceptional sound quality and versatile performance. It features a robust single 18” ferrite driver, ensuring deep and powerful bass. The frequency response ranges from 35Hz to 120Hz at -6 dB and extends from 30Hz to 140Hz at -10dB. This subwoofer can achieve a maximum SPL of 134 dB, making it suitable for various high-demand audio environments. Its Class D amplifier is capable of 500W RMS and peaks at 1200W, providing ample power for sustained performance.

1x 18″ woofer
Temperature controlled variable speed fan
110V/230V AC, 50 Hz / 60 Hz
CE and UKCA pending

Specs

Configuration	Powered subwoofer
LF transducer	1x 18” ferrite driver
Frequency response -6 dB	35 Hz to 120 Hz
Frequency response -10dB	30 Hz to 140 Hz
30 – 140Hz	90° x 60°
Max SPL	134 dB
Amplifier	Class D \| 500W RMS – 1.200W peak
AC Power input	220V/240V – 1.5A – 50 Hz / 60 Hz
Power connector	TrueCon
Cooling	Speed controlled fan
Controls	Power – Standby modus
Indicators	Power – Signal – Clip
Connectors	1x XLR/F – 1x XLR/M loop through
Enclosure	Aluminium – Wood
Handles	4x plastic handles
Colour	Black (RAL 9011)
Grille	Powder coated steel with grille cloth
Dimensions (WxHxD)	585 x 500 x 750 mm – 23.03 x 19.68 x 29.53 in
Net weight	40 kg – 88.2 lb
Attachment	Internal rigging – pole mount ø 35mm
3 performance modes	Concert – Club – Vocal
Optional accessories	Touring dolly – Vertical coupler – MULTISUB Cover
Power cable	Included
Certification	CE – UKCA – cETL
