DSP CAF DP48Pro

I.Thông số kỹ thuật:
Function Description
● 4 balanced inputs, 8 balanced outputs.
● 32-bit DSPSHARC chip processing, 96kHz sampling rate, 24bit AD/DA conversion.
● The input processing part includes high cut, low cut, 8 parametric equalizers, noise gate, gain, mute, phase, delay, linkage adjustment and other processing functions.
● The output processing part includes frequency division, 9 parametric equalization, gain, mute, compressor/limiter, phase, delay, linkage adjustment and other processing units.
● The PEQ gain, bandwidth, and frequency of all channels are continuously adjustable, and the types can be selected: parametric equalization, low-shelf filtering, high-shelf filtering, low-cut filtering, high-shelf filtering, 1st order phase shift, 2nd order phase shift.
● All inputs and outputs can be freely assigned in a matrix manner, and the name of each input and output channel can be changed.
● All input and output channels have independent phase curve adjustment functions. In the PEQ type, the phase shift level 1 is a 180-degree curve adjustment, and the phase shift level 2 is a 360-degree curve adjustment.
● All high-cut and low-cut filters, crossover types are selectable: Butterworth, Linquarelli, Bessel, slopes are selectable from -6dB/Oct to -48dB/Oct.
● The threshold, ratio, attack time, and recovery time of the output channel’s compressor/limiter are continuously adjustable.
● The delay modules of all input and output channels have a delay time of up to 680ms.
● Parameter settings can be freely copied between any channels, and any channel can be adjusted in conjunction.
● You can see the PEQ curve adjustment graphs of all current input or output channels on any input or output channel.
● Built-in test signal generator, the output mode can be selected from pink noise, white noise and 20Hz-20kHz sine wave, and the signal amplitude is adjustable
● The front panel is equipped with input and output level indicators, USB control port, and 232&485 control port on the rear panel. One-click connection makes the user’s operation easier and faster.
● 30 user presets, the overall machine status and each preset can be stored and recalled individually. The ID setting function can cascade control 250 machines, and also has a password protection function to make the equipment more secure.
Technical Parameters
System specifications
Frequency response: 20Hz-20kHz,-0.3dB
Dynamic range: 115dBu
Distortion: <0.008% at 1kHz(0dBu) Crosstalk: >70dBu, 20Hz-20kHz
Total analog ratio: >75dBu 1KHz
Input type: Balanced XLR connection
Gain: 35dBu
Maximum input level: +13dBu
Impedance: 1MΩ/stereo; 500KΩ
Output type: Balanced XLR connection
Maximum output level: +13dBu
Impedance: <500Ω/Mono
Digital processing part: 24bit sigma-delta A/D, D/A conversion (24bit sigma-delta A/D, D/A) 32 bit SHARC DSP, 96kHz sampling rate
Display: Dot matrix LCD displays current parameters and all settings
Power supply: AC 95V-250V 50/60Hz
Net dimensions (W × H × D): 482 × 205 × 44 MM
Net weight: 2.8KG

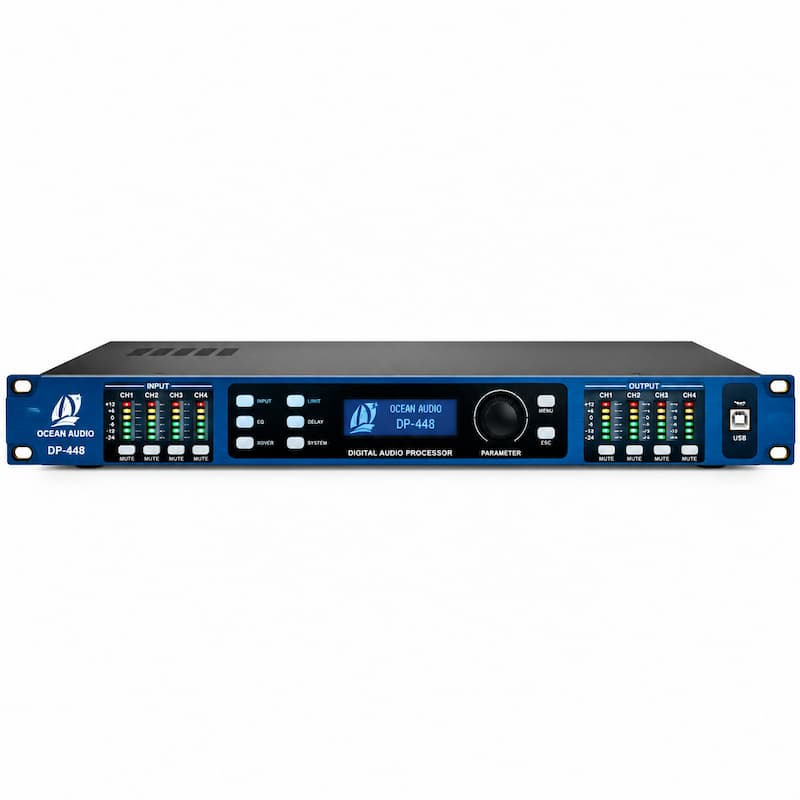

II. Hình ảnh

Phần mềm CAF DP48 Pro Tại đây
