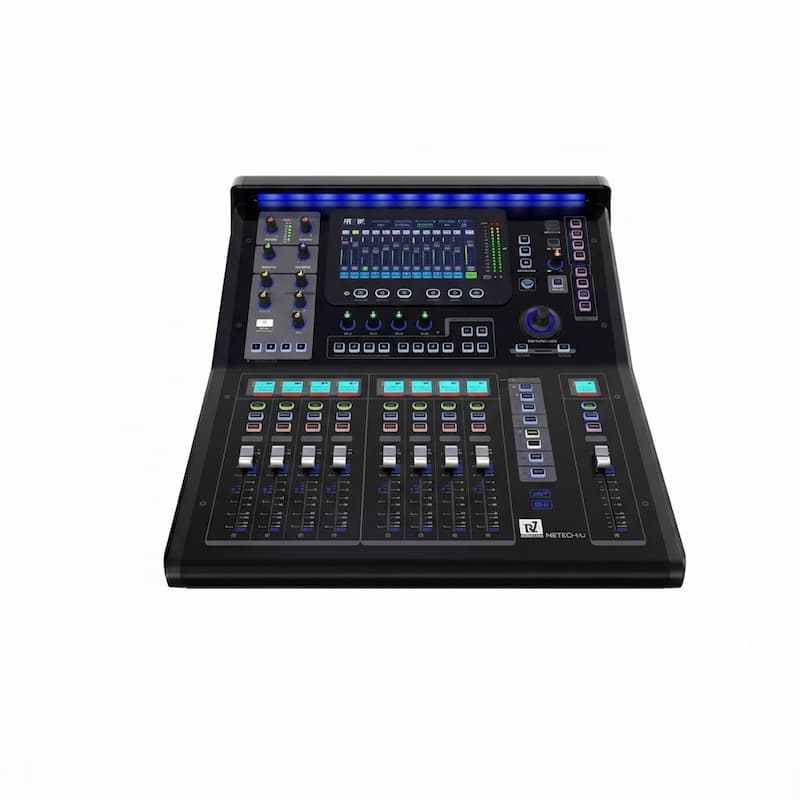

Mixer MXD16Pro lux (Mixer Digital)

I. Thông số kỹ thuật

12 channels of Mic/Line (XLR/TRS composite balanced interface), 2 channels of stereo LineIN (¼”TRS balanced interface), 1 channel of stereo USB disk or Bluetooth playback. .13 channels of output:
8 MIX bus outputs (XLR balanced interface), 1 stereo Main-Out L/R (XLR balanced interface), 1 stereo USB disk recording, 1 stereo monitoring (1/4″ TRS stereo interface, 16Ω minimum impedance headphones ) .6.1″x3.5″ (156mm x 90mm), 7″ high-definition color TFT LCD display, capacitive touch screen.
Numerically controlled analog gain adjustment Gain, phase adjustment, 4-position sound source selection such as pre-fader/post-fader, 4-band parametric equalization (PEQ), high-pass filter, low-pass filter, noise gate, and compressor.
15-band graphic equalizer, high-pass and low-pass filters, 4-band parametric equalization (PEQ), compressor, delay (max. 500ms).
Stereo dual-channel recording, select one group of 5 stereo bus outputs, Main-L/R MIX1/MIX2/MIX3/MIX4/MIX5/MIX6, MIX7/MIX8, as the recording source.
8 DCA groups (with mute), 4 Mute Groups.4 professional effects processors: Chorus, Echo, Flanger, Pitch-shift, Reverb, Stereo Delay, a total of six types of effect processing, 60 factory presets (FX Presets), and quick and easy-to-use user presets.8 custom shuttles, 4 custom buttons, 1 custom quick menu button. .Mixer Presets: Factory and user presets include all mixer parameters stored internally and on a USB drive or uploaded to the mixer.
Channel Presets: User channel presets can be stored internally and on a USB flash drive or uploaded to the mixer.
1 quick menu button, which can realize [save]/[delete]/[call]/[export]/[import] of the scene.
Apple iPad digital audio interactive management APP software can access and control almost all parameters of WJLT-18 through Wi-Fi hotspots, making remote control operation easy and enjoyable.
II.Hình ảnh
